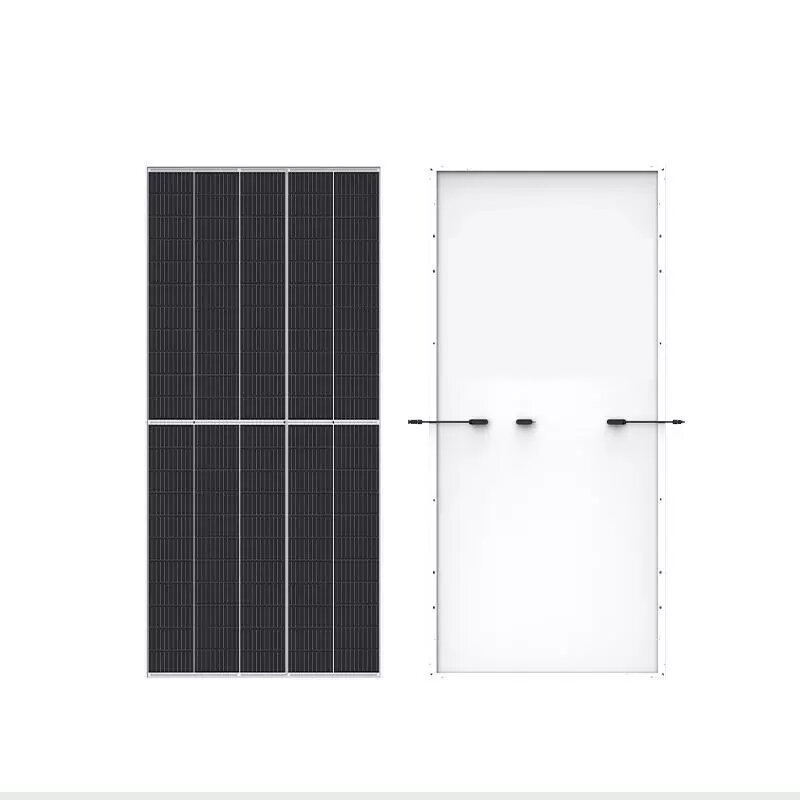

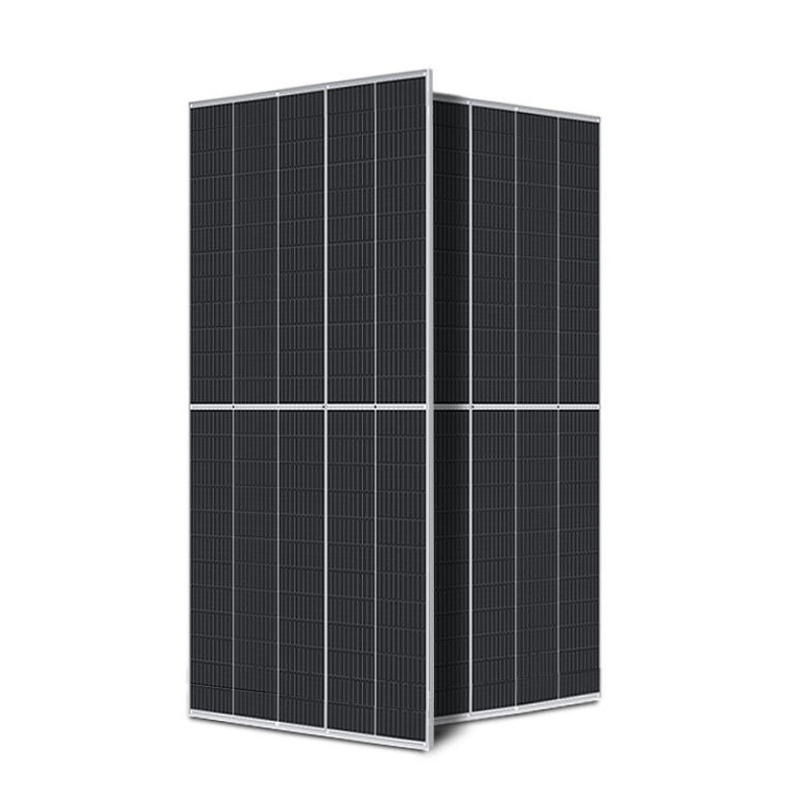

Tier 1 Solar Panel Jinko Tiger Pro 72HC 535-555 Watt
Longer Lifetime Power Yield. 0.55% annual power dearadation and 25 year linearpower warranty. Durability Against Extreme Environmental Conditions. High salt mist and ammonia resistance.
Model No :
JKM555M-72HL4Weight :
28 kg (61.73 lbs)Dimension :
2278x1134x35mm (89.69x 44.65x1.38 inch)Cell Orientation :
144 (6x24)Maximum Power (Pmax) :
555WMaximum Power Voltage (Vmp) :
32.99VTier 1 Solar Panel Jinko Tiger Pro 72HC 535-555 Watt
Better light trapping and current collection to improvemodule power output and reliability.
Optimized electrical desian and lower operating currentfor reduced hot spot loss and better temperature coefficient.
0.55% annual power dearadation and 25 year linearpower warranty.
High salt mist and ammonia resistance.
Certified to withstand: wind load (2400 Pascal) and snowoad (5400 Pascal).
| Mechanical Characteristics | ||||||||||
| Cell Type | P type Mono-crystalline | |||||||||
| No. of cells | 144 (6x24) | |||||||||
| Dimensions | 2278x1134x35mm (89.69x 44.65x1.38 inch) | |||||||||
| Weight | 28 kg (61.73 lbs) | |||||||||
| Junction Box | IP68 Rated | |||||||||
| SPECIFICATIONS | ||||||||||
| Module Type |
JKM535M-72HL4 JKM535M-72HL4-V |
JKM540M-72HL4 JKM540M-72HL4-V |
JKM545M-72HL4 JKM545M-72HL4-V |
JKM550M-72HL4 JKM550M-72HL4-V |
JKM555M-72HL4 JKM555M-72HL4-V |
|||||
| STC | STC | STC | STC | STC | ||||||
| Maximum Power | 535Wp | 540Wp | 545Wp | 550Wp | 555Wp | |||||
| Maximum Power Voltage |
40.63V | 40.70V | 40.80V | 40.90V | 40.99V | |||||
| Maximum Current | 13.17A | 13.27A | 13.36A | 13.45A | 13.54A | |||||
| Open-circuit Voltage | 49.34V | 49.42V | 49.52V | 49.62V | 49.72V | |||||
| Short-circuit Current | 13.79A | 13.85A | 13.94A | 14.03A | 14.12A | |||||
| Maximum system voltage |
1000/1500VDC(IEC) | |||||||||
| Maximum series fuse rating | 25A | |||||||||
| Power tolerance | 0~+3% | |||||||||
| Front Glass | 3.2mm | |||||||||
