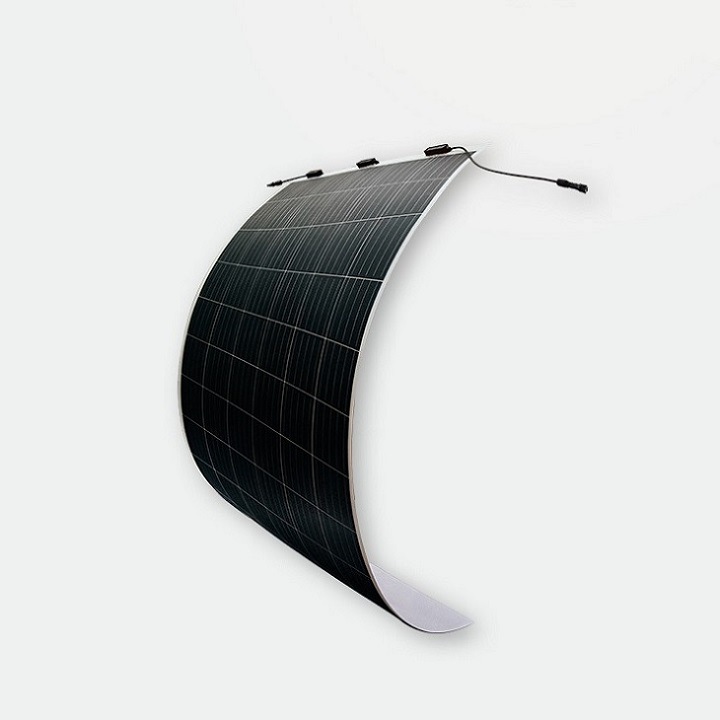

Sunman Flexible Solar Panel 425W 430W High Quality
70% lighter than conventional glass modules. Reducing time on roof by 40% and eliminatesthe use of mounting hardware. Ensuring the waterproof performance and safety performance of the roof. IEC61215:2016, EC61730:2016 and UL61730(USA).
Model No :
SMF430F-12X12UWWeight :
7.2kgDimension :
2120*1046*2mmCell Orientation :
144 (12x12)Maximum Power (Pmax) :
430WMaximum Power Voltage (Vmp) :
42.0VSunman Ultra-Thin Flexible Solar Panel 425W 430W High Quality
Ultra-light: Glass free module weighs 8.6 kg, 70% lighter than conventional glass modules.
Fast-Installation: Through "Quick-Bonding" installation, eArcrequires no penetration, reduces time on roof by 40% and eliminatesthe use of mounting hardware.
Safety:Seamless integration with underlying installation surface.ensuring the waterproof performance and safety performance of theroof.
Durable:eArc is the first glassless module to pass the samedurability tests as conventional glass modules， including IEC61215:2016,EC61730:2016 and UL61730(USA).eArc has alsopassed PID,salt mist level 8 tests.
| STC | SMF425F-12X12UW | SMF430F-12X12UW |
| Maximum Power (Pmax) | 425 | 430 |
| Maximum Power Voltage (Vmp) | 41.8 | 42.0 |
| Maximum Power Current (lmp ) | 10.17 | 10.24 |
| Open-circuit Voltage (Voc) | 49.6 | 49.8 |
| Short-circuit Current (lsc) | 10.67 | 10.74 |
| Module Efficiency (%) | 19.1 | 19.3 |
| Operating Temperature | -40°C to 85C | |
| Maximum System Voltage | 1500 V DC (IEC) | |
| Maximum Series Fuse Rating | 20 A | |
| Application Class | Class A | |
| Power Tolerance | 0/+5 W | |
| NMOT | SMF425F-12X12UW | SMF430F-12X12UW |
| Maximum Power (Pmax) | 321.4 | 325.1 |
| Maximum Power Voltage (Vmp) | 38.6 | 38.8 |
| Maximum Power Current (lmp) | 8.33 | 8.38 |
| Open-circuit Voltage (Voc) | 46.6 | 46.8 |
| Short-circuit Current (lsc) | 8.64 | 8.69 |
| MECHANICAL CHARACTERISTICS |
||
| Solar Cell |
Monocrystalline silicon(166mm half cell) | |
| No. of Cells |
144 (12x12) | |
| Module Dimensions |
2054x1084x2 mm | |
| Weight |
7.2kg | |
| Backsheet |
White | |
| Frame |
Frameless | |
| J-box |
IP 68 rated | |
| Output Cables |
Photovoltaic technology cable 4.0 mm 2 , (+)450 1 (-)450 mm | |
| Connector |
MC4 compatible | |
