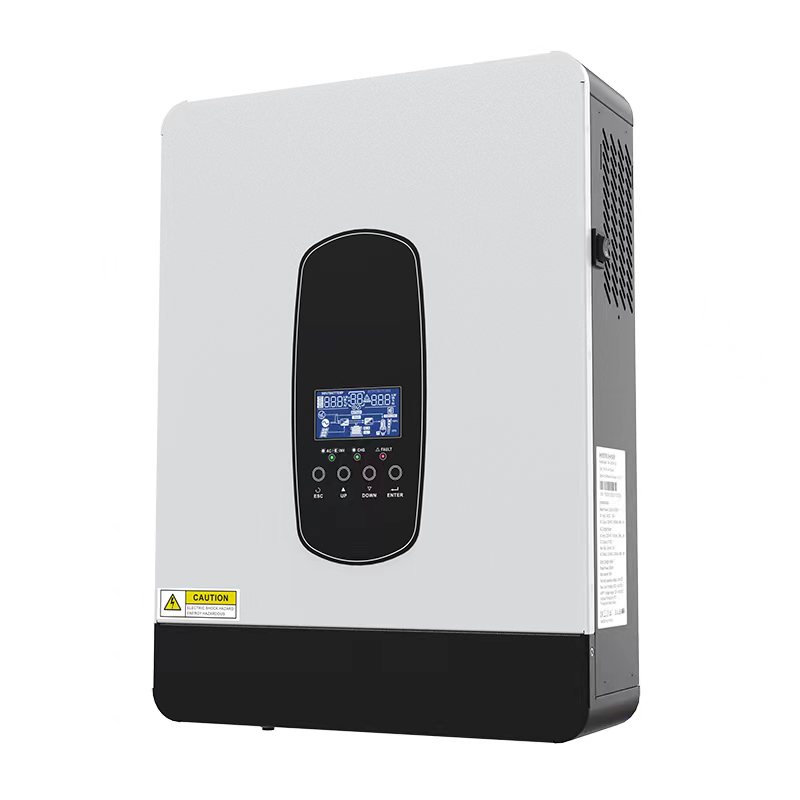

Off Grid Solar Power Inverter 2kw 48V PV with Parallel Function
SP-2200 is a pure sine wave inverter. It can be configured with grid or solar input priorities. The high photovoltaic input voltage range of 55-450VDC. SP-2200 supports communication between BMS and lithium batteries, intelligent battery charging design, and optimize battery life.
Model No :
SP-2200Rated Power :
2200VA/1800WWeight :
4.5 kgDimension :
405X286X98MMMaximum PV Array Power :
2000WMax Charge Current :
80AMaximum PV Array Open Circuit Voltage :
450VDCOff Grid Solar Power Inverter 48V PV with Parallel Function
SP-2200 is a pure sine wave inverter. It can be configured with grid or solar input priorities. The high photovoltaic input voltage range of 55-450VDC. SP-2200 supports communication between BMS and lithium batteries, intelligent battery charging design, and optimize battery life.
| MODEL |
SP-2200 |
| Rated Power | 2200VA/1800W |
| INPUT | |
| Voltage | 230VAC |
| Selectable Voltage Range |
170-280VAC(for personal computers) 90-280VAC(for home appliances) |
| Frequency Range | 50Hz/60Hz (Auto sensing) |
| OUTPUT | |
| AC Voltage Regulation (Batt.Mode) | 230VAC+5% |
| Surge power | 4400VA |
| Transfer Time |
10ms (for personal computers) 20ms (for home appliances) |
| Wave form | Pure Sine Wave |
| BATTERY & AC CHARGER | |
| Battery Voltage | 12VDC |
| Floating Charge Voltage | 13.5VDC |
| Overcharge Protection | 15.5VDC |
| Maximum charge current | 60A |
| SOLAR CHARGER | |
| MAX.PV Array Power | 2000W |
| MPPT Range@ Operating Voltage | 55-450VDC |
| Maximum PV Array Open Circuit Voltage | 450VDC |
| Maximum Charging Current | 80A |
| Maximum Efficiency | 98% |
| PHYSICAL | |
| Dimension.D*W*H(mm) | 405X286X98MM |
| Net Weight (kgs) | 4.5kg |
| Communication Interface |
RS232/RS485(Standard) WIFI(Optional) |
| OPERATING ENVIRONMENT | |
| Humidity | 5% to 95% Relative Humidity(Non-condensing) |
| Operating Temperature | -10C to 55°C |
| Storage Temperature | -15°C to 60°C |
