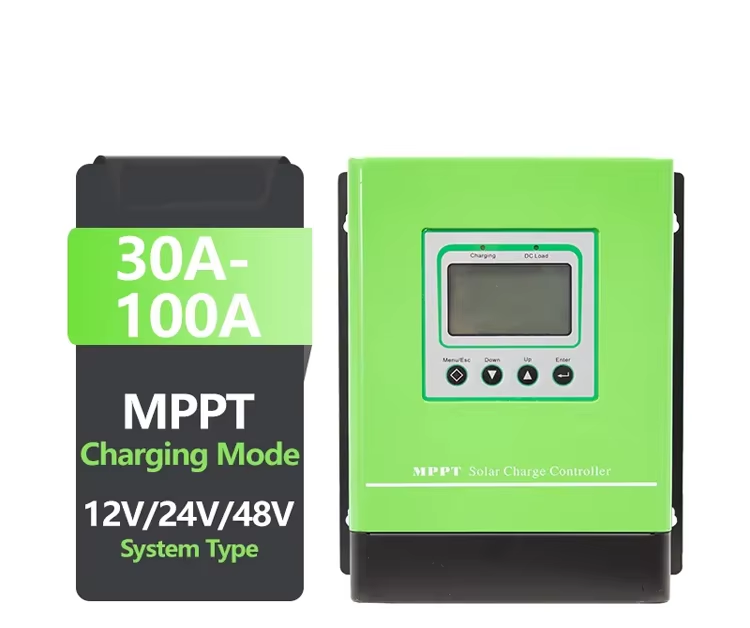

MPPT Solar Controller

Product Type ：MPPT Solar Controller

Product Series ：MB Series

System voltage ：12/24/36/48VDC or self-identification

Rated current ：20A-30A

Maximum working voltage ：150V

Product Briefing

MB series solar controller 20A-30A adopts multi-phase synchronous rectification technology and advanced MPPT control algorithm, featuring fast response speed, high reliability and high industrial standard.

industrialisation standard. Multi-synchronous rectification technology ensures extremely high conversion efficiency under any charging power environment, which greatly improves the energy utilisation of the solar system; advanced MPPT control algorithm is also adopted.

Advanced MPPT control algorithm minimises the maximum power point loss rate and loss time, ensuring maximum power point tracking efficiency, response speed and high power conversion efficiency in small and large power bands.

Advanced MPPT control algorithm minimises the maximum power point loss rate and loss time, ensuring the maximum power point tracking efficiency, response speed and high power conversion efficiency in both large and small power segments, which can quickly track to the maximum power point of the PV array and obtain the maximum energy of the solar panels under any environment.

The maximum power of the solar panel can be quickly tracked in any environment. It operates at rated power in the full working temperature range and has the function of automatic power reduction for over-temperature charging; it has the function of double automatic limitation of rated charging current and power, which fully ensures that the product can be used in the full range of temperature and temperature.

It has double automatic limiting function of rated charging current and power, which fully ensures the system stability of the product in over-temperature operation and access to excess PV modules as well as under high temperature operation. The LCD screen dynamically displays the operation status,

The LCD screen dynamically displays the operation status, operation parameters, controller log, control parameters and so on. With over-charging, PV connection and other protection functions, effectively ensure that the solar power supply system is safer, more stable and more

Long-term operation

Performance characteristics

 Adaptive three-stage charging mode controlled by digital circuits, effectively prolonging battery life and improving system performance.

 Excellent MPPT high power point tracking technology, tracking efficiency not less than 99.5%.

 Unique circuit design provides high DC/DC conversion efficiency in both high and low power bands, up to 98.5% and 97% full load efficiency.

 Advanced MPPT control algorithms ensure that the maximum power point loss rate and loss time are minimised.

 Accurate identification and tracking of multi-peak maximum power points.

 Dual automatic limiting function of rated charging power & charging current.

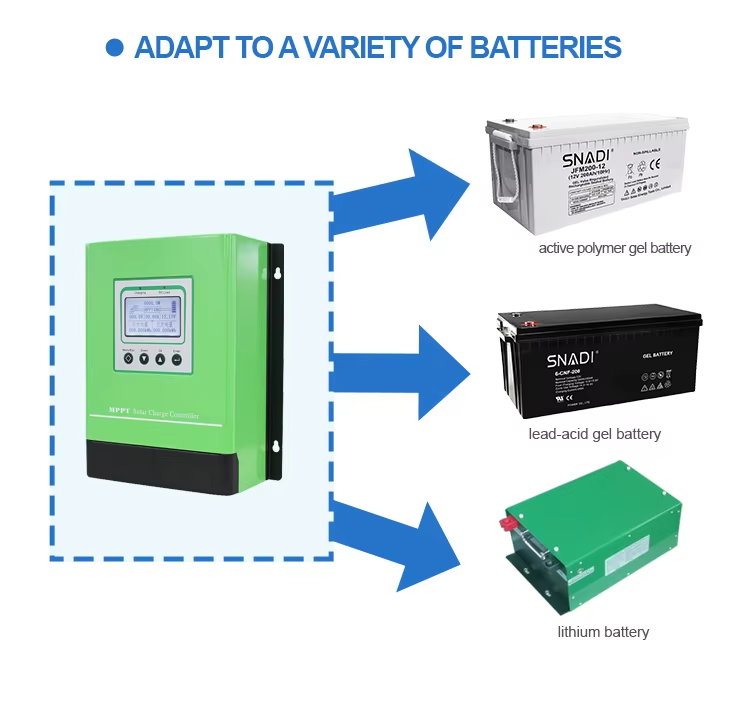

 Provide multiple battery types, support maintenance-free, gel, liquid, lithium and other battery types charging.

 With settable battery temperature compensation function.

 With real-time power statistics and recording function.

 With high temperature charging automatic power reduction function. Built-in over-temperature protection mechanism ensures that when the temperature exceeds the set value of the device, the charging current decreases linearly with the temperature, thus reducing the temperature rise of the controller and avoiding high temperature.

This reduces the temperature rise of the controller and avoids high temperature damage.

 With the photovoltaic panel input reverse connection and battery reverse connection protection function.

Various sampling data are visualised on the screen for easy access.

 Maximum input PV voltage 150V, a wider range of maximum power point operating voltage, improve the utilisation rate of PV modules, applicable to a variety of commonly used solar panel specifications.

 Ultra-low power consumption power supply chip, reduce static standby energy consumption, reduce energy loss at night.

Areas of application

Widely used in home distributed power generation systems, remote communication sites, highway surveillance systems, marine and RV applications due to its excellent environmental adaptability.

​Technical parameters

Model		MB20415F				MB30415F
System voltage		12/24/36/48VDC OR Self-recognition
Rated current		20A				30A
Controller operating voltage range		11-64V
Lead-acid battery type		i Maintenance-free (default) / colloidal / liquid / customised
Lithium Battery Type		Lithium iron phosphate / lithium ternary / customised
Rated charging current		20A				30A
Rated charging power		260W/12V				390W/12V
		520W/24V				780W/24V
		780W/36V				1170W/36V
		1040W/48V				1560W/48V
Maximum open-circuit voltage of photovoltaic modules		150V(at the lowest temperature)138V(At 25°C)
Maximum power point operating voltage range		12V systems				20~150VDC
		24V systems				36~150VDC
		36V systems				48~150VDC
		48V systems				64~150VDC
Tracking efficiency		≥99.5%
Maximum conversion efficiency		97.5%
Temperature Compensation Coefficient		-3mV/ºC/2V
Static loss		200mA/12V;100mA/24V;50mA/48V;
DC Load Output Voltage		Same as battery voltage
Rated output current of DC load		20A
DC Load Output Control Method		normally open and normally closed mode
protective function		PV input anti-reverse connection protection, battery input reverse connection protection, overcharging protection undervoltage protection, over-temperature protection
Heat dissipation method		air cooling
communication method		RS485
Operating temperature range		-20ºC~+50ºC
Storage temperature range		-40ºC~+70ºC
Relative humidity range		0~90%RH

​
