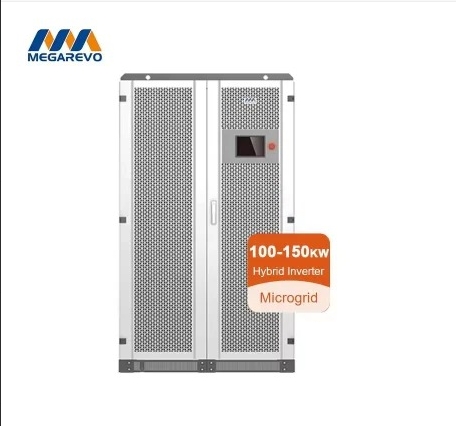

Megarevo Mps Microgrid Series Solar Inverters 50kw- 500kw Three Phase Hybrid Inverters

Megarevo Mps Commercial Microgrid Inverter 50kw 100kw 250kw 500kw Three Phase Hybrid Energy Storage Inverter

  • Model No :

    Megarevo MPS0030-MPS0500

  • Weight :

    1..31kg

  • Dimension :

    800W*800D*1900Hmm
Inquiry now

Megarevo Mps Microgrid Series Solar Inverters 50kw- 500kw Three Phase Hybrid Inverters



After-sales Service: 5years
Warranty: 5years
Nature of Source Flow: Active Inverter
Phase: Three
Output Power: >1000W
Certification: SAA, CE, ROHS, ISO9001

Mps Microgrid Hybrid Inverter

​

Model
MPS0030
 MPS0050
MPS0100
MPS0150
MPS0250
MPS0500
AC(on-grid)
Max output power
33
55
110
165
275
550
Rate output power
30
50
100
150
250
500
Voltage range(V)
320-460V
Rated current(A)
43
72
144
216
361
722
Rated frequency (Hz)
50/60
THDi
<3%
AC connection
3W+N+PE
AC(off-grid)
Rated power(kW)
30
50
100
150
250
500
Rated voltage(V)
400V
Rated current(A)
43
72
144
216
361
722
THDU
≤1% linear; or≤5% nonlinear
PV input
Max.PV input voltage
1000
Max.PV power
36/72
60/120
120/180/240
300/360
600/660/720
MPPT voltage range
250-850
Battery
Battery voltage range
250~850
320-850
420-850
500-850
General data
Dimension W*D*H (mm)
800*800*1900
1200*800*2050
1800X800X2050
2800X800X2050
Ingress protection
IP20
Display and communication
Display
LCD touch-screen
BMS communication
RS485, CAN
Hot Tags : Mps Microgrid Hybrid Inverter Hybrid Inverter Three-Phase Load Power Supply Single Phase Load Power Supply power inverter solar system
