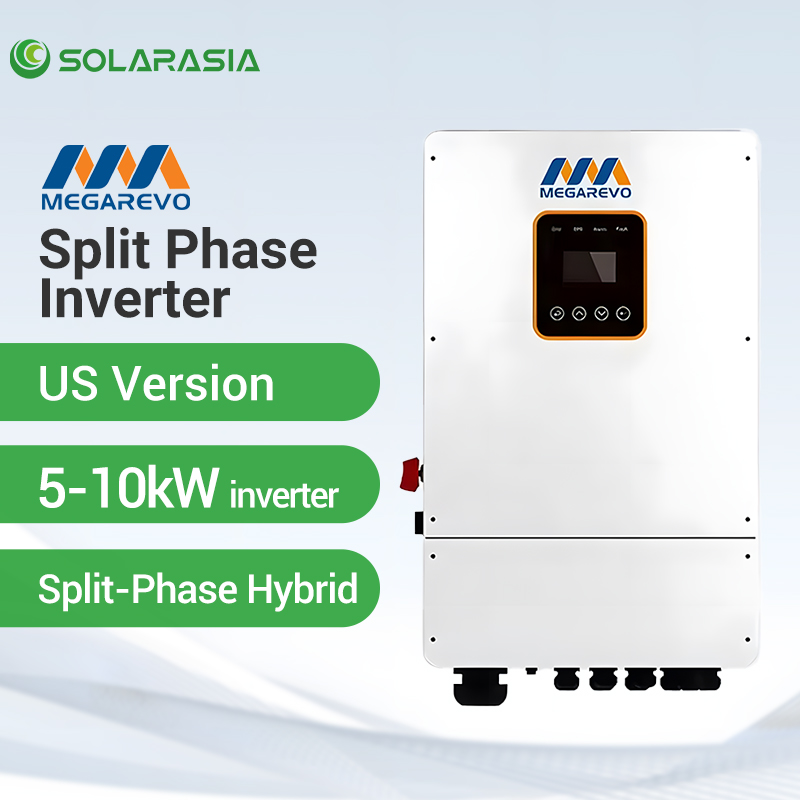

Megarevo 48V On Off Grid Hybrid Split Phase Solar Inverter US Version
Passed UL 1741:2021, IEEE 1547.1, UL1699B, South Africa NRS097-2-1:2017 test certification; Support multi-machine parallel connection; Support multi-machine parallel mode sharing a battery pack; Single-machine load capacity 100A.
Model No :
R10KLNAWeight :
41kgDimension :
460*225*760mmMaximum PV Array Power :
13kWMax Charge Current :
190AMegarevo 48V On Off Grid Hybrid Split Phase Solar Inverter US Version
Passed UL 1741:2021, IEEE 1547.1, UL1699B, South Africa NRS097-2-1:2017 test certification;
Support multi-machine parallel connection;
Support multi-machine parallel mode sharing a battery pack;
Single-machine load capacity 100A;
Support parallel SOC equalization control and parallel current sharing control;
Using split-phase topology and eliminating the transformers, to make the system efficiency higher;
Support the diesel generator and the grid access at the same time;
| Model | R5KLNA | R6KLNA | R8KLNA | R10KLNA |
| Input (PV) |
||||
| Max. power(kW) | 7.5 | 9 | 12 | 13 |
| Max. DC voltage (V) | 500 | |||
| MPPT voltage range(V) | 120~500 | |||
| Max.Input current of single MPPT(A) | 14 | |||
| MPPT tracker/strings | 4/1 | |||
| AC output | ||||
| Rated output power(kVA) | 5 | 6 | 8 | 10 |
| Max. apparent Power (kVA) | 5.5 | 6.6 | 8.8 | 11 |
| Max. output current(A) | 24 | 28.8 | 38.3 | 47.8 |
| Ac output voltage(V) | 120/240(split phase),208(2/3 phase),230 (single phase) | |||
| Frequency (Hz) | 50/60 | |||
| PF | 0.8lagging-0.8leading | |||
| THDi | <3% | |||
| AC output topology | Split phase, 2/3 phase, single phase | |||
| Battery | ||||
| Battery voltage range(V) | 40~58 | |||
| Max. charging voltage(V) | 58 | |||
| Max. charge/discharge current(A) | 120/120 | 135/135 | 190/190 | 190/210 |
| Battery type | lithium /Lead-acid | |||
| Communication interface | CAN/RS485 | |||
| EPS output | ||||
| Rated power(kVA) | 5 | 6 | 8 | 10 |
| Rated output voltage(V) | 120/240 (split phase), 208 (2/3 phase),230 (single phase) | |||
| Rated output current(A) | 24 | 28.8 | 38.3 | 47.8 |
| General data | ||||
| Max. efficiency | ≥98.2% | |||
| North american efficiency | ≥97.2% | |||
| Operation temperature (°C) | -25~60 | |||
| Dimensions W*D*H (mm) | 460*225*760 | |||
| Weight(kg) | 41 | |||
| Display and communication | ||||
| Display | LCD,touch screen | |||
| Interface:RS485/Wifi/4G/CAN/DRM | Yes | |||
| Safety standard | UL1741,CSA C22.2 No.107.1:16,UL1998 | |||
| EMC | FCC Part15, Class B | |||
| On-grid | IEEE1547,CPUC Rule21,SRD V2.0,UL1741 SA, UL741 SB | |||
| DCARC-Fault | UL1699B | |||
