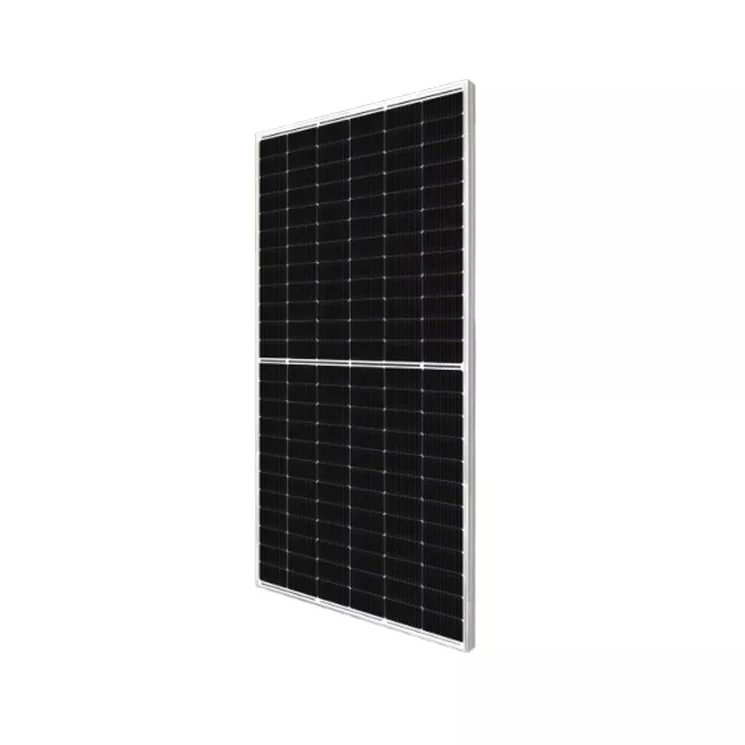

Canadian Solar Panel 545W 550W 555W Monofacial
Module power up to 555 W, Module efficiency up to 21.6 %; Up to 4.5 % lower LCOE, Up to 5.6 % lower system cost; Comprehensive LID / LeTID mitigation, technology, up to 50% lower degradation; Compatible with mainstream trackers; cost effective product for utility power plant;
Model No :
CS6W-530 / 535 / 540 / 545 / 550 / 555MSWeight :
27.6 KgDimension :
2261 x 1134 x 30mmMaximum Power Voltage (Vmp) :
41.9VCell Orientation :
144 CellsMaximum Power (Pmax) :
555WCanadian Solar Panel 545W 550W 555W Monofacial
| Nominal Max. Power (Pmax) | 530W | 535W | 540W | 545W | 550W | 555W |
| Opt. Operating Voltage (Vmp) | 40.9V | 41.1V | 41.3V | 41.5V | 41.7V | 41.9V |
| Opt. Operating Current (Imp) | 12.96A | 13.02A | 13.08A | 13.14A | 13.20A | 13.25A |
| Open Circuit Voltage (Voc) | 48.8V | 49.0V | 49.2V | 49.4V | 49.6V | 49.8V |
| Short Circuit Current (Isc) | 13.80A | 13.85A | 13.90A | 13.95A | 14.00A | 14.05A |
| Module Efficiency | 20.7% | 20.9% | 21.1% | 21.3% | 21.5% | 21.6% |
| Operating Temperature | -40°C~+85°C | |||||
| Max. System Voltage | 1500V( IEC/UL) or 1000V (IEC/UL) | |||||
| Module Fire Performance | TYPE 1(UL 61730 1500V) or TYPE 2(UL 61730 1000V) or CLASS C(IEC 61730) | |||||
| Max. Series Fuse Rating | 25A | |||||
| Application Classification | Class A | |||||
| Power Tolerance | 0~+ 10W | |||||
| Specification Data |
||||||
| Cell Type |
Mono-crystalline | |||||
| Cell Arrangement |
144 [2x (12 x 6)] | |||||
| Dimensions |
2261 x 1134 x 30 mm (89.0 x 44.6 x 1.18 in) |
|||||
| Weight |
27.6 kg (60.8 lbs) | |||||
| Front Cover |
3.2 mm tempered glass with anti-ref-lective coating | |||||
| Frame |
Anodized aluminium alloy | |||||
| J-BoX |
IP68, 3 bypass diodes | |||||
| Cable |
4 mm2 (IEC), 12 AWG (UL) | |||||
|
Cable Length (Including Connector) |
410 mm (16.1 in) (+) / 290 mm (11.4in) () or customized length* | |||||
| Connector |
T6 or MC4-EVO2 or MC4-EVO2A | |||||
| Per Pallet |
36 pieces | |||||
| Per Container (40' HQ) |
720 pieces or 648 pieces （Only for US & Canada） | |||||
