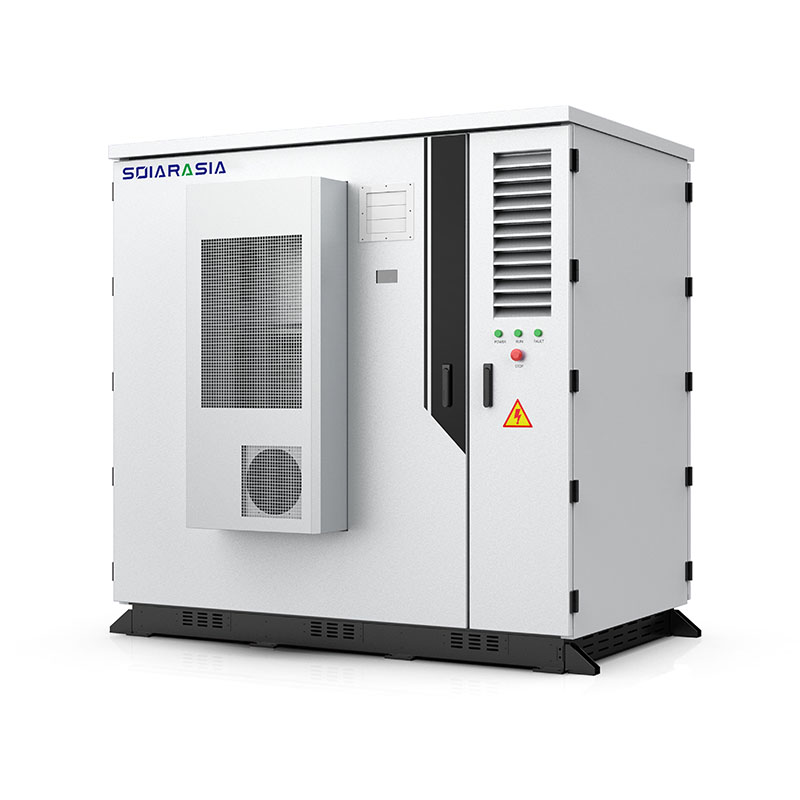

200KWH Storage Energy Container Hybrid Ess Solar Battery Lithium
Lithium lon Battery Storage Container Solution. The 200KWH BESS containers contain more energy and AC&DC integrated design, reducing the initial investment of simple operation and maintenance, safe and reliable.
Model No :
AP100200-CWeight :
2600kgDimension :
1200*2350*1050mmRated Frequency :
50HzVoltage Range :
627~806V200KWH Storage Energy Container Hybrid Ess Solar Battery Lithium
Lithium lon Battery Storage Container Solution. The 200KWH BESS containers contain more energy and AC&DC integrated design, reducing the initial investment of simple operation and maintenance, safe and reliable.
| TYPE | 100KW/200KWH | |
| DC BATTERY PARAMETERS | ||
| CELL | LFP 280Ah | |
| PACK | 14.336kWh/1P16S | |
| BATTERY SYSTEM | 200kWh/1P224S | |
| VOLTAGE RANGE | 627~806V | |
| TEP. SENSORS | 140 | |
| AC SIDE PARAMETERS | ||
| OUTPUT POWER | 58kw | 100kW |
| MAX POWER | 62.5kW | 120kW |
| THD | ＜3% | |
| DC COMPONENT | < 0.5%lpn | |
| OUTPUT VOLTAGE | 380V | |
| POWER FACTOR | -1~1 | |
| FREQUENCY | 50Hz | |
| SYSTEM PARAMETERS | ||
| MAX EFFIENCY | ≥91% | ≥89% |
| RATE | ≤0.25C | ≤0.5C |
| DEEP | 100%DOD | |
| VOLTAGE | TN380V | |
| LIFE CYCLES | >8000 | |
| SHIFT TIME | <100ms | |
| PORT | CAN/RS485 | |
| PROTECTION | IP55 | |
| COOLING | AIR CONDITION | |
| WOEKING TEP | -35~55°C | |
| HUMIdity | 5~95%RH | |
| NOISE | <70dB | |
| ALTITUDE | ≤2000m | |
| SIZE(W*H*D) | 1200*2350*1050mm | |
| FIRE PROTECTION | AUTOMATIC | |
| WEIGHT | 2600kg | |
