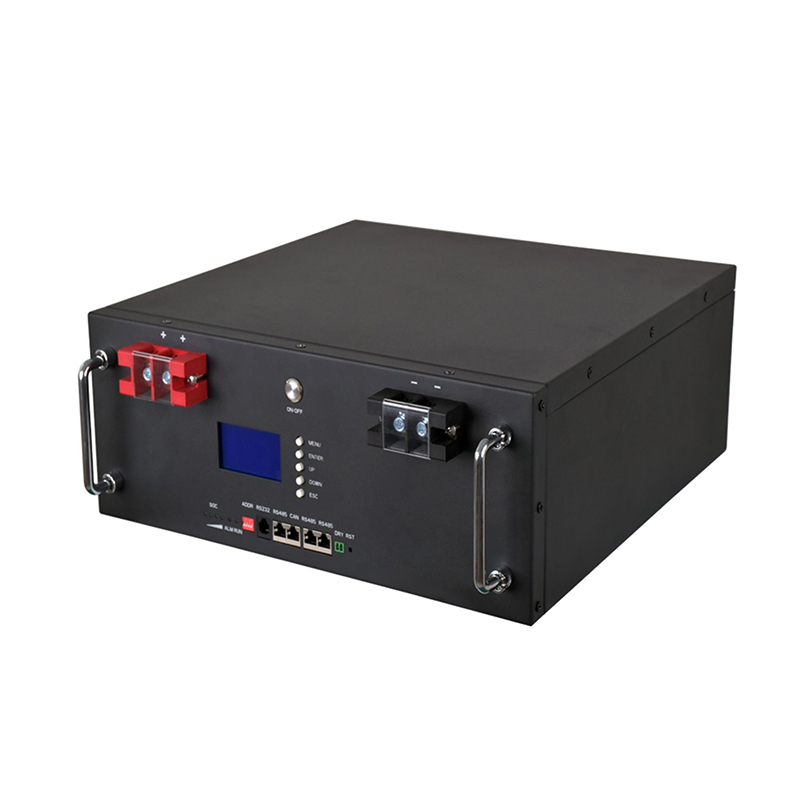

100Ah ESS-5120 Solar Household Rack Energy Storage Battery
This 5kwh rack ESS is made with 3U 51.2V 100AH lifepo4 battery module, each module is made by 16s1p 16pcs 3.2v 100ah prismatic lifepo4 battery cells inside and smart BMS to support 15pcs parallel connection at max.
Model No :
ESS-5120Nominal Voltage :
51.2VRated Capacity :
100AhWeight :
47.5KGDimension :
440*440*132mmMaximum Solar Charge Current :
100A100Ah ESS-5120 Solar Household Energy Storage Battery
This 5kwh rack ESS is made with 3U 51.2V 100AH lifepo4 battery module, each module is made by 16s1p 16pcs 3.2v 100ah prismatic lifepo4 battery cells inside and smart BMS to support 15pcs parallel connection at max.
| Model | ESS-5120 |
| Battery Type | LiFePO4 |
| Nominal Energy | 5kWh |
| Nominal Capacity | 100Ah |
| Nominal Voltage | 51.2V |
| Battery Cell | 3.2V 100Ah Prismatic Battery Cell |
| Configuration (*S*P) | 16S1P (51.2v 100Ah) |
| Discharge Cut-off Protect Voltage | 40V（adjustable） |
| Charge Cut-off Protect Voltage | 58.4V（adjustable） |
| Max. Charge Current | 100A |
| Max. Discharge Current | 100A |
| Communication Port | CAN, RS485, RS232（Optional） |
| Compatible Inverter Brand | SMA, Growatt, Solax, Solis,DEYE,Sungrow, Sofar, Voltronic, Sorotec, Studer, etc. |
| Module Parallel ability | 1S1P~1S15P(Low Voltage System); |
| Cycle Life | ≥ 6000 Cycle （80% DOD） |
| L*W*H (mm) | 440*440*132mm |
| Weight (KG) | 47.5Kg |
| Cooling | Natural cooling |
| Environment | Indoor |
| Discharge Temperature (℃) | 0℃~+65℃ |
| Charge Temperature (℃) | -20℃~65℃ |
| Storage Conditions | –20°C to 30°C (–4°F to 86°F)Up to 95% RH, non-condensingState of Energy (SoE): 25% |
| Maximum Elevation | 3000 m (9843 ft) |
| Installation Method | Rack mounted |
